Vapor Pipe Shield

VPS-2000A

SKU: VPS-2000A

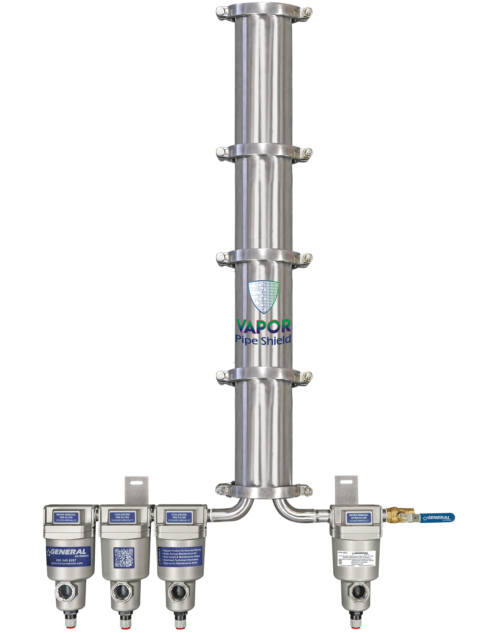

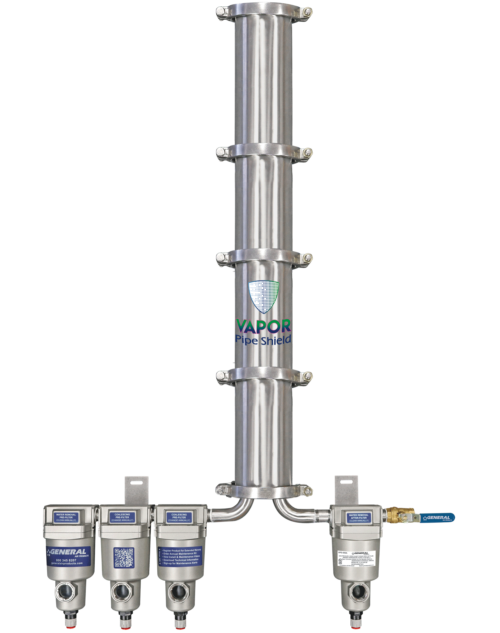

The VPS-2000A is a UL Listed Vapor-Phase Corrosion Inhibitor (VpCI®) Delivery System for Dry Pipe & Pre-Action Fire Sprinkler Systems. The VPS-2000A has a corrosion prevention Fill Capacity of up to 2,000 gallons (the Largest Riser) and a Total Capacity of up to 8,000 gallons for up to 4 individual systems.

Lead Time: 1 to 3 days to ship
For large orders & exact lead times, please consult factory.

Find this unit in stock with one of our Distributors near you:

Request A Quote
SKU VPS-2000A
Fill Capacity (Largest Riser) 2000 gallons
Total Capacity (Max 4 Systems) 8000 gallons
Inlet / Outlet Connections 1/2″ FNPT
Max Pressure 150
Dimensions 26L x 6.5W x 44.25H
Unit Weight 38

Vapor Pipe Shield is a UL Listed Vapor phase Corrosion Inhibitor delivery system that is fully mechanical with no electrical connections and simply piped directly in-line between the air compressor and the dry pipe valve. Using a technology backed by over forty years of established science, Vapor Pipe Shield is easy to install and maintain, and makes corrosion mitigation in any dry or pre-action fire sprinkler system simple, efficient, and highly cost-effective.

General Arrangement Engineer Submittal Package Quick Start Guide VpCI Agency Assessment User Manual Cut Sheet
PDF ZIP PDF PDF PDF PDF
