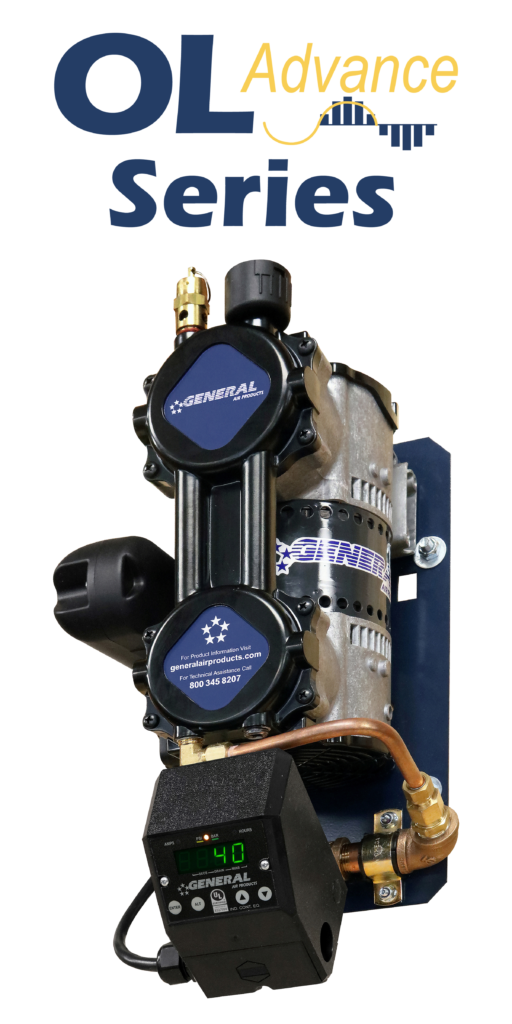

Oil-Less Riser Mount Air Compressors With Digital Pressure Switch. For Use In Dry Pipe & Pre-Action Fire Sprinkler Systems.
Introducing the most advanced Fire Protection Air Compressors ever built! Featuring an all-new, UL 508 Listed, General Air Products Digital Pressure Switch.
Digital Pressure Switch:
The ONLY UL-Listed Digital Pressure Switch in the Fire Protection industry designed and built by the compressor manufacturer themselves. Displays Pressure Readings, Run Hours, Amps, Cycles, and is extremely easy to adjust pressure settings in the field.
All of our OL Advance single phase standard pressure and low pressure units are UL 1450-VDUR listed for fire protection, fully automatic, and virtually maintenance free. We include a 30” braided stainless steel flex hose and a riser mounting kit to allow for a fast and easy installation. While we do include a riser mounting kit, these compressors can be wall or floor mounted as well.
The OL Advance Series fire protection air compressors cover 30 minute fill up times on sprinkler systems up to 600 gallons in size at 40 PSI.
Lead Time: 7 days to ship
For large orders & exact lead times, please consult factory.
Model Number | System Capacity (gal) | Order Maintenance Kit | Engineering Submittal Package | Wiring Guide | Cut Sheet |
|---|---|---|---|---|---|
120 (gal) @ 40 PSI 320 (gal) @ 18 PSI |  |  |  | | |
250 (gal) @ 40 PSI 695 (gal) @ 18 PSI | | | | | |
400 (gal) @ 40 PSI 1160 (gal) @ 18 PSI | | | | | |
500 (gal) @ 40 PSI 1270 (gal) @ 18 PSI | | | | | |
600 (gal) @ 40 PSI 1575 (gal) @ 18 PSI | | | | |
Click on the model numbers to find additional product information and to order maintenance kits
Model Number | 20 PSI | 30 PSI | 40 PSI | 50 PSI | 60 PSI | 70 PSI | 80 PSI | 90 PSI | 100 PSI |
|---|---|---|---|---|---|---|---|---|---|
265 | 170 | 120 | 95 | 75 | 65 | 55 | 45 | 40 | |
565 | 350 | 250 | 190 | 155 | 125 | 105 | 90 | 75 | |
930 | 595 | 400 | 325 | 255 | 215 | 180 | 155 | 135 | |
1030 | 655 | 500 | 360 | 290 | 240 | 200 | 170 | 145 | |
1250 | 790 | 600 | 435 | 350 | 285 | 240 | 210 | 180 |
pre-action fire sprinkler systems to supervisory pressure within 30 minutes per NFPA 13.
Additional Downloads
- OL Series Installation & Operation Manual
- Digital Pressure Switch Quick Reference Guide
- OL Series Installation Drawing
- Riser Mount Instructions
- Air Compressor Installation Checklist
- Air Compressor Maintenance and Troubleshooting Guide
- How To Select Air Compressors for Fire Sprinkler Systems
- Spanish – OLRV Spanish Series Cut-sheet
Fire Sprinkler System Training
The National Fire Sprinkler System Training Center at General Air Products is located in Exton, Pennsylvania. This NICET recognized training facility is state-of-the-art and features fire sprinkler products from several manufacturers in the fire protection industry allowing attendees to get hands-on with a variety of live equipment. We also offer virtual training and webinars online.
